Logiwa is a Warehouse Management Software.
Pipe17 supports the following data flows for the Logiwa Connector:
- Push Products to Logiwa
- Push Shipping Requests to Logiwa
- Pull Inventory from Logiwa
- Pull Fulfillment from Logiwa
- Push Arrivals to Logiwa
- Pull Receipts from Logiwa
- Pull Locations from Logiwa
In this article
Requirements
- Pipe17 Account - Ensure that you have a Pipe17 account. If you do not yet have a Pipe17 account, book a demo with a Pipe17 team member to get started.
- Ensure you have access to your Logiwa admin account. This will be needed to establish connection to Pipe17/Logiwa account.

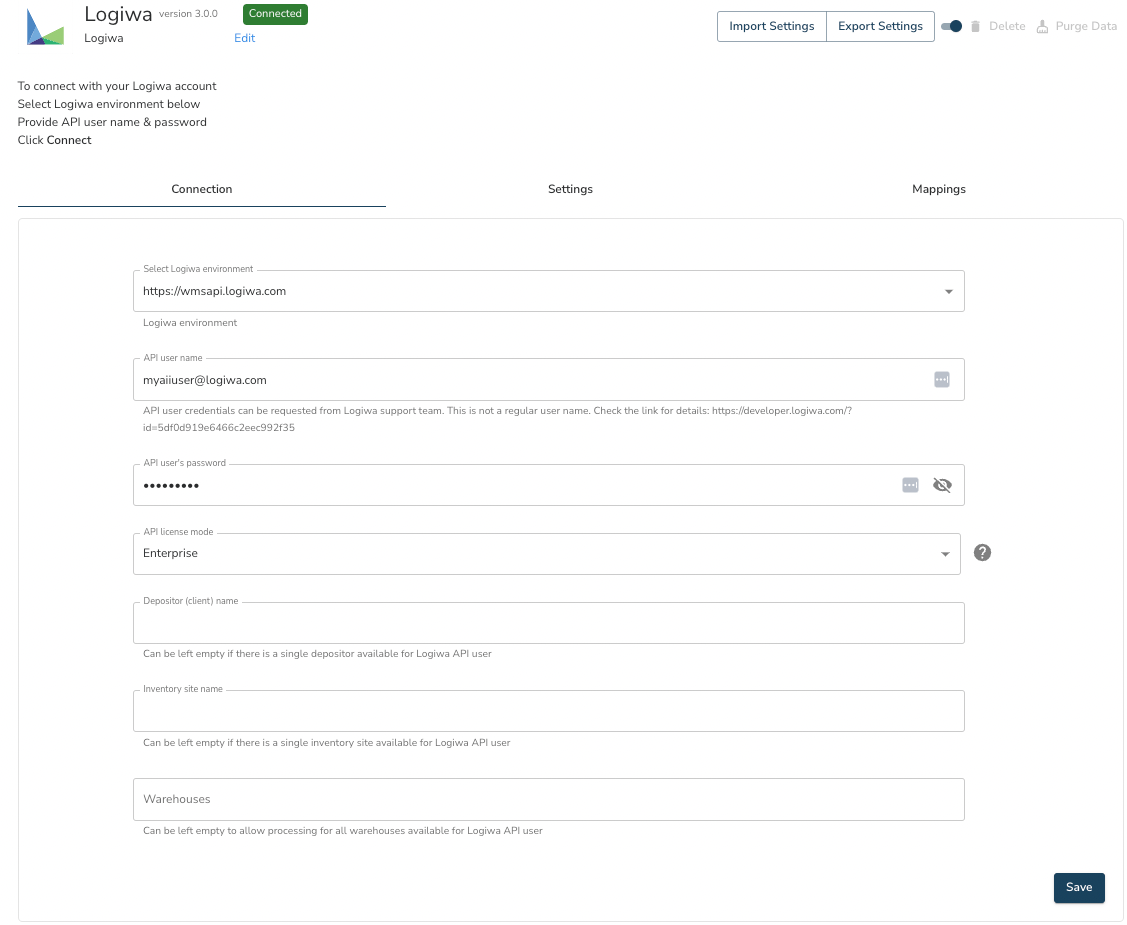

Connecting Logiwa to Pipe17
Pre-requisite
You will need the following from Logiwa to establish connectivity from Pipe17 to Logiwa:
- API user name - This username and password credentials can be requested from Logiwa support team. This is not a regular user name. Check the link for details: https://developer.logiwa.com/?id=5df0d919e6466c2eec992f35
- API user's password - Same as above
- API License Mode - Enterprise or Standard. There are API rate limit differences between Enterprise and Standard. Please contact Logiwa support to know you license mode.
- Depositor (client) name - If there is a single depositor available from the APIs, leave it blank. Else you will need to put the depositor client name here.
- Inventory site name - If there is a single depositor available from the APIs, leave it blank. Else you will need to put the depositor client name here.
- Warehouses - Provide specific warehouse to be processed by Pipe17. It can be left empty to process all warehouses. Note: This field is required for Logiwa sandbox accounts where API does not return list of warehouses.
Connection Steps
- Navigate to the Integrations tab in your Pipe17 portal and click on "Add Integration" in the upper right corner.
- Find the Logiwa Connector and Click on Add.
- The Connection Flow Settings page is displayed, leave these toggles turned off for now. We will revisit these later in the guide.
- Click Next
- Provide all the pre-requisites. At the minimum, API user, and password needs to be entered. Environment and API license mode is required to be picked from available values.
- Click Connect.

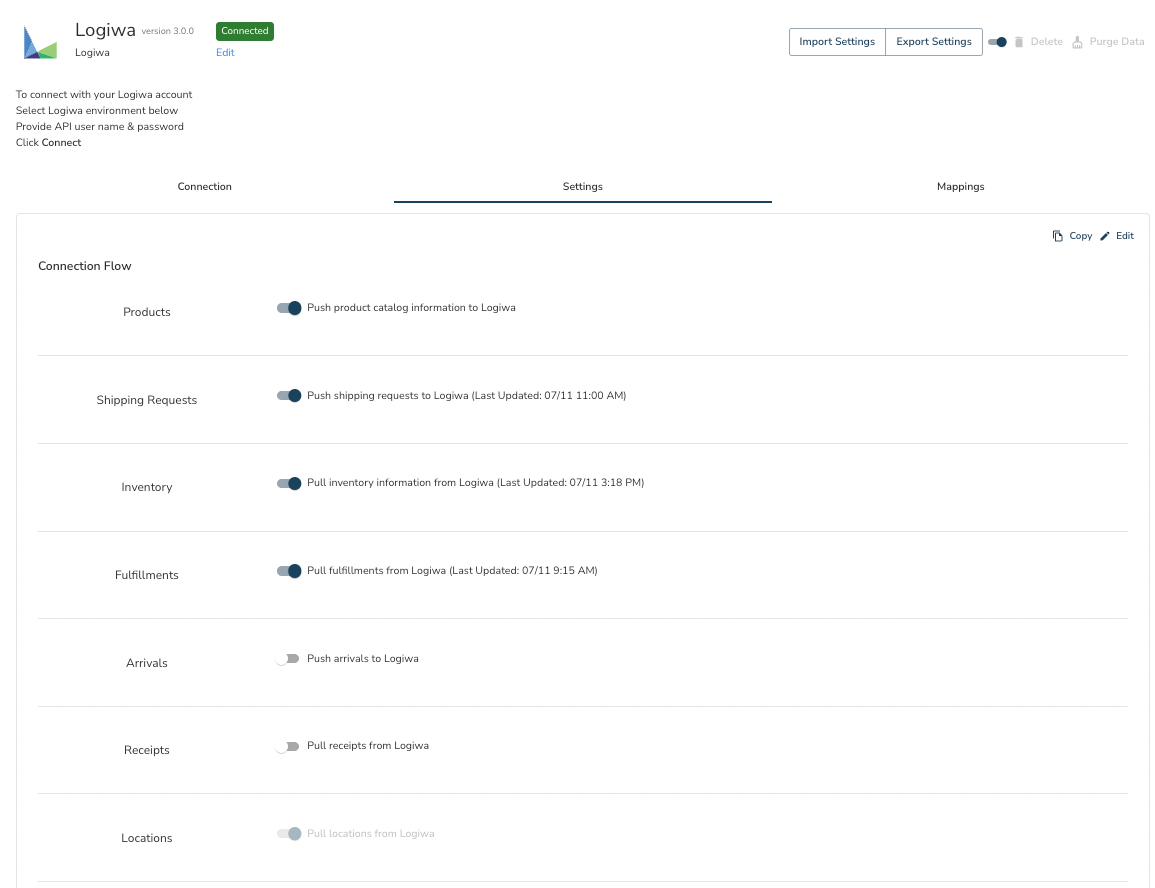

Connection Flow Settings
- Products
- Push products to Logiwa from Pipe17: pushes Product Catalog updates to Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
- Shipping Requests
- Push shipping requests to Logiwa from Pipe17: pushes shipping requests updates to Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
- Inventory
- Pull inventory from Logiwa into Pipe17: pulls Inventory updates from Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
- Fulfillments
- Pull fulfillments from Logiwa into Pipe17: pulls fulfillments updates from Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
- Arrivals
- Push arrivals to Logiwa to Pipe17: pushes arrivals updates to Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
- Receipts
- Pull receipts from Logiwa into Pipe17: pulls receipts updates from Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
- Locations
- Pull locations from Logiwa into Pipe17: pulls Locations updates from Logiwa starting from the datetime when the Logiwa Integration was enabled on Pipe17.
Integration Settings
You can leave the rest of the integration settings as is. Nothing is required.
Shipping Request
During testing, if you want to only send specific sales orders to Logiwa, you can provide the (external) Order ID in the Shipping Request's "Process only shipping requests for specific order IDs" field.
Arrivals
During testing, if you want to only send specific Purchase or Transfer orders to Logiwa, you can provide the (external) Order ID in the Shipping Request's "Process only arrivals for specific order IDs" field.
Product
If you want Pipe17 to update products already in Logiwa, turn on the "Allow updating products already existing in Logiwa product catalog".
If you want to only push certain product/SKUs to Logiwa, provide the list in "Push only products with specific SKUs" field.
Inventory
If you want to only pull inventory for certain product/SKUs from Logiwa, provide the list in "Process only inventory items with specific SKUs" field.
What's Next?
Congrats! You've connected Logiwa to your Pipe17 account, and you're now ready to begin testing! Check out our Pipe17 Quick Start Guide for some helpful context on testing and other subjects.
Need help with order flows or integration specific settings? Contact our support team. We're happy to help! |
