Connect GoFlow 3PL Logistics to Pipe17

The GoFlow 3PL Logistics connector enables seamless integration between GoFlow's warehouse management system (WMS) and Pipe17. GoFlow is a cloud-based platform designed for third-party logistics providers, supporting order fulfillment, inventory management, receiving, and shipping operations across multiple warehouses.

Use this connector to:

  • Push shipping requests from Pipe17 into GoFlow for fulfillment
  • Pull fulfillment confirmations from GoFlow back into Pipe17
  • Sync warehouse inventory levels from GoFlow into Pipe17
  • Detect orders canceled in GoFlow and update Pipe17 shipping request statuses accordingly

Supported API version: GoFlow REST API v1
Authentication: API Key
Rate limits: 60 requests/min (GET), 30 requests/min (POST/PUT), 6 requests/hour (async reports)


Setup

Before you begin

  • An active GoFlow account with API access.
  • The GoFlow account owner's sign-in. GoFlow lets only the account owner create API tokens.
  • Your GoFlow portal URL, for example https://yourcompany.goflow.com.
  • The GoFlow store ID for each order source you send to GoFlow. Your GoFlow representative can give you these.
  • Your products set up in GoFlow with the same SKUs as in the app. GoFlow rejects orders with products it doesn't recognize.
  • Access to Integrations in the app.

Get your credentials from GoFlow

  1. Sign in to the GoFlow web app as the account owner.
  2. Go to Settings › API Tokens.
  3. Generate a new token, or copy an existing one.
  4. Copy the token right away and store it securely. Treat it like a password.
  5. Note your portal URL from the browser's address bar, for example https://yourcompany.goflow.com. The app uses the subdomain (yourcompany) to reach GoFlow's API.
  6. Ask your GoFlow representative for the store ID of each order source (for example, your Walmart or Amazon store).

For how GoFlow API tokens and subdomains work, see the GoFlow API reference.

Connect in the app

  1. Navigate to Integrations in the app.
  2. Click Add Integration, and then select GoFlow 3PL. The connect pop-up opens.

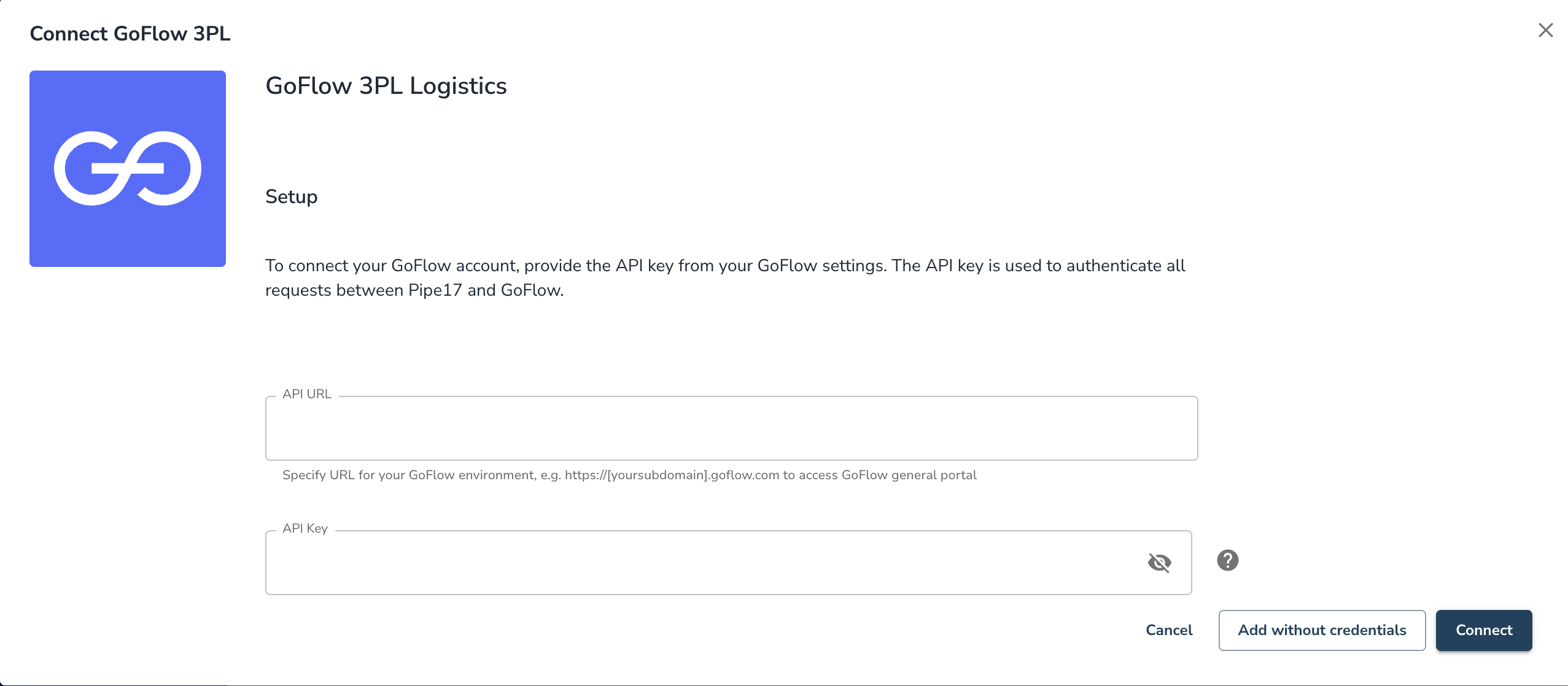

Connect goflow pop-up
  1. In API URL, enter your GoFlow portal URL, for example https://yourcompany.goflow.com.
  2. In API Key, paste your GoFlow API token.
  3. Click Connect. The app checks the token by reading your GoFlow warehouses.

Note: To add the integration without credentials, click Add without credentials. The integration is added, but it doesn't sync until you enter the credentials on the Connection Details tab and save.

Confirm the connection

  1. On Integrations, check that the integration shows Connected. If it shows Error or Not Configured, check the subdomain in API URL, generate a new token in GoFlow, enter it on the Connection Details tab, and save.
  2. Make sure the integration switch is on.
  3. Leave Pull locations from GoFlow on (it's on by default). Within about 5 minutes, your GoFlow warehouses appear as locations in the app. Set up your routing so orders go to these locations. See Using Locations.
  4. In Order Source (Pipe17) to Store Id (GoFlow) mapping, add one entry per order source in the format orderSource:storeId, for example walmart:1024. If an order's source has no mapping, the app marks its shipping request Failed.
  5. To test with one order, enter its order ID in Process only shipping requests for specific order IDs, and then turn on Push shipping requests to GoFlow.
  6. Wait about 5 minutes, and then open the order in the app. Its shipping request should show Sent to Fulfillment, and the order should appear in GoFlow. If it shows Failed, check the store ID mapping and that the products exist in GoFlow.
  7. Turn on Pull fulfillments from GoFlow. After GoFlow ships the test order, the fulfillment appears on the order in the app within about 5 minutes.
  8. Turn on Pull inventory from GoFlow. To test with a few SKUs first, enter them in Process only inventory for specific SKUs. Inventory comes from a GoFlow report, so it updates every 1 to 12 hours rather than every few minutes.
  9. To have orders canceled in GoFlow update the app, turn on Pull shipping request cancellations from GoFlow and choose a status in Shipment canceled action.
  10. Clear the test filters so the app processes all orders and SKUs.

Settings

Integration settings

Setting Description Default
Order Source (Pipe17) to Store Id (GoFlow) mapping Maps Pipe17 order sources to GoFlow store IDs so shipping requests are sent with the correct store association. Required for Push shipping requests to GoFlow: a shipping request whose order source has no mapping is marked Failed. Enter each mapping in orderSource:storeId format (e.g., amazon:1002, walmart:1024). Store ID values can be obtained from your GoFlow representative. None
Process only shipping requests for specific order IDs Restrict shipment pushes to a specific list of order IDs. Useful during testing to limit which shipping requests are sent to GoFlow. All orders
Pull shipping request cancellations from GoFlow Detects orders canceled in GoFlow and updates the matching shipping request in the app, using the status in Shipment canceled action. Off
Shipment canceled action Status applied to a Pipe17 shipping request when the corresponding order is canceled in GoFlow. Options: reviewRequired, canceled, canceledRestock, failed. canceledRestock
Process only inventory for specific SKUs Pull inventory only for a specified list of SKUs. Leave empty to sync all SKUs. All SKUs
Force inventory resync When enabled, triggers a full inventory resync from GoFlow. Automatically turns off once the resync starts. Off

Flows

Shipments out: Shipping Requests → GoFlow

Pushes Pipe17 shipping requests into GoFlow for fulfillment.

Trigger: Pipe17 poll for shipping requests in readyForFulfillment, canceled, or canceledRestock status.

  • Use the Process only shipping requests for specific order IDs setting to restrict which orders are pushed during testing
  • Products not recognized in GoFlow will cause the order to be rejected; ensure the product catalog is up to date in GoFlow before pushing orders

Fulfillments in: Fulfillment Confirmations ← GoFlow

Pulls fulfilled GoFlow orders and creates fulfillment records in Pipe17.

Trigger: Vendor poll (VendorPoll) against GoFlow's fulfilled orders

  • Partial shipments generate multiple fulfillment records per shipping request
  • Only orders that have completed the full pick-pack-ship workflow in GoFlow are returned

Inventory in: Inventory ← GoFlow

Pulls current inventory quantities from GoFlow into Pipe17 using an asynchronous report.

How it works:

  1. The connector requests an inventory count report from GoFlow
  2. It polls until the report is ready
  3. The completed report is downloaded and processed in batches

Scheduling: The sync interval adapts based on how long the previous cycle took — intervals are bucketed at 1 hour, 4 hours, 8 hours, and 12 hours.

  • Use the Process only inventory for specific SKUs setting to limit the sync to specific products
  • Use Force inventory resync to trigger an immediate full resync outside the normal schedule

Manual action: Pull inventory by SKU

The connector supports an on-demand action, Pull inventory from GoFlow by SKU, to pull inventory for specific SKUs immediately, without waiting for the next scheduled sync. Use this when you need an up-to-date count for a particular product.


Locations in: Warehouse Locations ← GoFlow

Pulls warehouse location data from GoFlow into Pipe17.

Trigger: Vendor poll against GoFlow's warehouse locations


Shipment cancellations in: Cancellations ← GoFlow

Detects orders that have been canceled in GoFlow and updates the corresponding Pipe17 shipping request status. This flow runs only when Pull shipping request cancellations from GoFlow is on (off by default).

Trigger: Vendor poll for canceled GoFlow orders

  • When a cancellation is detected, the Pipe17 shipping request is updated to the status configured in the Shipment canceled action setting
  • Default status applied is canceledRestock
  • Available statuses: reviewRequired, canceled, canceledRestock, failed

Troubleshooting

Connection test fails

Symptom Likely cause Resolution
Unauthorized error Invalid or expired API token Regenerate the token under Settings → API Tokens in GoFlow and update the connection
Host not found Incorrect API URL Confirm the subdomain URL is formatted as https://yourcompany.goflow.com with no trailing slash
Forbidden error Token lacks required permissions Ensure the token has read access to warehouses, orders, and inventory

Shipping requests not appearing in GoFlow

  • Check that the order source is mapped in Order Source (Pipe17) to Store Id (GoFlow) mapping. Without a mapping, the app marks the shipping request Failed and doesn't send it to GoFlow.
  • Check that the order is routed to a location pulled from this GoFlow integration. The app pushes only shipping requests assigned to this integration.
  • Confirm the shipping request status is readyForFulfillment — requests in other statuses will not be picked up
  • Check whether the Process only shipping requests for specific order IDs filter is active and inadvertently excluding orders
  • Review error logs for validation failures — the response will indicate which field GoFlow rejected
  • Verify all product codes in the request exist in GoFlow's product catalog

Fulfillments not syncing back to Pipe17

  • Confirm GoFlow has completed the full pick-pack-ship workflow for those orders
  • Check that the external order reference on the GoFlow order matches the Pipe17 shipping request reference exactly

Inventory counts are stale or incorrect

  • Inventory uses an adaptive sync schedule; if the previous cycle was long, the next sync may be several hours away — use Force inventory resync to trigger an immediate update
  • If you only need counts for specific products, use the on-demand Pull inventory from GoFlow by SKU action instead of waiting for a full sync
  • Check whether the Process only inventory for specific SKUs filter is active and excluding products you expect to see

Cancellations not reflecting in Pipe17

  • Confirm Pull shipping request cancellations from GoFlow is on and Shipment canceled action is set to the intended target status
  • Verify the order was fully canceled in GoFlow, not just placed on hold or partially canceled

Request limit errors

Rate limit retries are handled automatically — the connector will retry up to 3 times, waiting the duration specified in GoFlow's error response before retrying. If you are consistently hitting limits, reduce the frequency of manual actions or contact GoFlow support to discuss your account's limit tier.
