The Radial RUC connector connects the app to Radial Unified Cloud (RUC), Radial's warehouse platform. It sends shipping requests, products, arrivals, and returns from the app to Radial, and brings fulfillments, inventory, receipts, returns, and warehouse locations back into the app. Radial sends most updates to the app as they happen, and the app also checks Radial every 5 minutes.
With this connector, you can:
- Send shipping requests to Radial and cancel them before they ship.
- Receive one fulfillment for each parcel that Radial ships, with tracking details.
- Send your product catalog, arrivals, and returns (RMAs) to Radial.
- Receive inventory, goods receipts, and return receipts from Radial.
- Import Radial distribution centres as locations in the app.
- See Radial's rejection reasons, such as SKUs missing from the Radial item master, as exceptions in the app.
Setup
Before you begin, make sure you have:
- An active Radial RUC account.
- Your RUC client ID and distribution centre code from Radial.
- Your XML feeds base URL and XML feeds API key from Radial.
- Your JSON API base URL, OAuth2 token URL, OAuth2 client ID, and OAuth2 client secret from Radial.
- A webhook shared secret to give to Radial. Radial includes it with each update it sends to the app.
- Your order ID prefix and SKU prefix, if Radial stores your orders or items behind a client prefix.

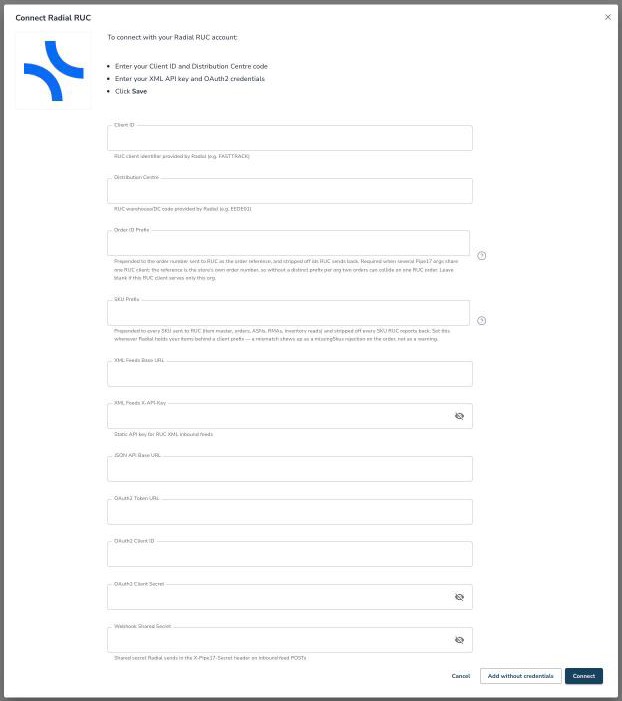

To connect Radial RUC:
- Navigate to Integrations in the app.
- Click Add Integration, and then select Radial RUC.
- Enter your RUC client ID in the Client ID field.
- Enter your distribution centre code in the Distribution Centre field.
- If Radial uses prefixes for your account, enter them in the Order ID Prefix and SKU Prefix fields. Include any separator, for example
253-. Otherwise, leave these fields blank. - Enter your XML feeds URL in the XML Feeds Base URL field.
- Enter your XML feeds API key in the XML Feeds X-API-Key field.
- Enter your JSON API URL in the JSON API Base URL field.
- Enter your token URL in the OAuth2 Token URL field.
- Enter your OAuth2 credentials in the OAuth2 Client ID and OAuth2 Client Secret fields.
- Enter your shared secret in the Webhook Shared Secret field.
- Click Connect.
After you connect, ask Radial to register the Pipe17 address that receives their updates. Radial needs it to send fulfillments, inventory, receipts, return receipts, and feed acknowledgments to the app. To get the address, submit a support request.
Settings
| Setting | Description | Options/Default |
|---|---|---|
| Pull locations from Radial RUC | Imports Radial distribution centres into the app as locations. | On/Off. Default: Off |
| Push shipping requests to Radial RUC | Sends shipping requests that are ready for fulfillment to Radial, and sends cancellations for canceled shipping requests. | On/Off. Default: Off |
| Process only shipping requests with specific order IDs | Sends only the shipping requests for the order IDs you list. Use this while testing. | Optional. Empty sends all |
| Pull fulfillments from Radial RUC | Brings shipped parcels from Radial into the app as fulfillments. This setting also controls how the app handles Radial's feed acknowledgments for all flows. If you turn it off, the app doesn't receive Radial's acceptance or rejection of shipping requests, products, arrivals, or returns. | On/Off. Default: Off |
| When RUC cancels a fulfilled order, transition the Pipe17 shipping request to | The status the app sets on a shipping request when Radial reports that it canceled the order. | Canceled — Restock (default), Canceled, or Failed |
| Default Shipping Method | The shipping method sent to Radial when a shipping request has no shipping code. Radial uses it to choose a carrier service. Radial provides the valid values. | Optional |
| Default Incoterm | The incoterm for EU customs on outbound shipments, for example DDP or DAP. Required for EU warehouses. |
Optional |
| Packing Slip Language | The two-letter language code for printed packing slips, for example EN, DE, or FR. |
Default: EN |
| Order Priority | The fulfillment priority Radial applies to every order from this integration. Radial provides the value. | Optional |
| Push product catalog to Radial RUC | Sends product updates to Radial. | On/Off. Default: Off |
| Process only products with specific SKUs | Sends only the SKUs you list. | Optional. Empty sends all products |
| Pull inventory from Radial RUC | Applies the daily inventory snapshot and the inventory adjustments that Radial sends. The app uses Radial's free quantity as available inventory. | On/Off. Default: Off |
| Process inventory only for specific SKUs | Updates inventory only for the SKUs you list. | Optional. Empty processes all SKUs |
| Push arrivals (ASN/PO) to Radial RUC | Sends arrivals to Radial, and sends cancellations for canceled arrivals. | On/Off. Default: Off |
| Process only arrivals with specific order IDs | Sends only the arrivals for the order IDs you list. Use this while testing. | Optional. Empty sends all |
| Pull receipts (GR) from Radial RUC | Brings goods receipts from Radial into the app. | On/Off. Default: Off |
| Push returns (RMA) to Radial RUC | Sends returns to Radial as RMAs. | On/Off. Default: Off |
| Pull return receipts (RS) from Radial RUC | Brings returns and return receipts from Radial into the app. | On/Off. Default: Off |
| Push an RMA to RUC once the return reaches | The return statuses that send an RMA to Radial. Add authorized if Radial needs the RMA as soon as you create the return. A return is never sent to Radial twice. | authorized, shipped, expected. Default: shipped |
| Process returns only for specific order IDs | Processes only returns for the order IDs you list. Use this while testing. | Optional. Empty processes all |
| Force returns resync | Starts a full returns resync, and then turns itself off. | On/Off. Default: Off |
Flows
| Flow | Direction | Notes |
|---|---|---|
| Locations | Radial RUC → Pipe17 | Runs every 5 minutes. Imports Radial distribution centres, using the distribution centre code as the location's vendor ID. |
| Shipping requests | Pipe17 → Radial RUC | Runs every 5 minutes. Sends shipping requests in Ready for Fulfillment. The shipping request moves to Sent to Fulfillment when Radial accepts it, or to Failed when Radial rejects it. Changes to a shipping request after it's sent aren't supported. |
| Cancellations | Pipe17 → Radial RUC | Runs every 5 minutes. When you cancel a shipping request, the app cancels the order in Radial. If Radial already shipped the order, the cancellation is rejected, the shipping request returns to Sent to Fulfillment, and the app creates a late-cancel exception. |
| Fulfillments | Radial RUC → Pipe17 | Radial sends shipment updates as they happen, and the app processes them every 5 minutes. The app creates one fulfillment for each shipped parcel, for full and partial shipments. If Radial cancels the order, the app updates the shipping request based on When RUC cancels a fulfilled order, transition the Pipe17 shipping request to. |
| Products | Pipe17 → Radial RUC | Runs every 5 minutes. Sends one catalog item for each product. Product dimensions that Radial measures aren't brought back into the app. |
| Inventory | Radial RUC → Pipe17 | Radial sends a daily snapshot and adjustments as they happen, and the app processes them every 5 minutes. A SKU missing from a snapshot isn't set to zero. |
| Arrivals | Pipe17 → Radial RUC | Runs every 5 minutes. Sends new arrivals and cancellations. A canceled arrival that was never sent is skipped. Changes to an arrival after it's sent aren't supported. |
| Receipts | Radial RUC → Pipe17 | Radial sends goods receipts as they happen, and the app processes them every 5 minutes. Each receipt is applied once, including damaged quantities. |
| Returns | Pipe17 → Radial RUC | Runs every 5 minutes. Sends returns in the statuses set in Push an RMA to RUC once the return reaches. |
| Returns and return receipts | Radial RUC → Pipe17 | Runs every 5 minutes. The app finds RMAs in Radial for your shipments, and Radial sends return receipts as items arrive at the warehouse. |
Troubleshooting
-
The connection fails or returns an authorization error
One of the URLs or credentials is wrong, or they're for a different Radial environment. Check the JSON API Base URL, OAuth2 Token URL, OAuth2 Client ID, and OAuth2 Client Secret values with Radial, and then update them in the connection settings. -
A shipping request or product has an exception that lists SKUs not in the RUC item master
Radial rejected it because the SKUs don't exist in Radial. Make sure Push product catalog to Radial RUC is on and the products were sent. If Radial stores your items behind a prefix, check that SKU Prefix matches it exactly. -
An exception lists Radial distribution centres with no matching location
Radial reported data for a distribution centre that has no location in the app. Turn on Pull locations from Radial RUC, or create a location that uses the distribution centre code as its vendor ID. Then resolve the exception. To learn more, see Getting Started with Locations in Pipe17. -
A canceled shipping request went back to Sent to Fulfillment with a late-cancel exception
Radial already shipped the order, so it can't be canceled. Handle the order as a return. -
Shipping requests stay in Ready for Fulfillment, or fulfillments and inventory don't arrive
The app isn't receiving Radial's updates. Check that Pull fulfillments from Radial RUC is on, because it also handles Radial's acceptance of shipping requests. Then check with Radial that they registered the Pipe17 address and use the same Webhook Shared Secret.
