Connect Cin7 Core to Pipe17

Cin7 Core is an ERP (Enterprise Resource Planning) system for small to mid-size companies offering a range of financial and inventory/order management features. Pipe17 supports the following flows to/from Cin7 Core:

• Pull orders from Cin7 Core OR Push orders to Cin7 Core
• Push shipment information to Cin7 Core
• Pull OR push inventory to/from Cin7 Core
• Push fulfillment information to Cin7 Core
• Pull locations from Cin7 Core

In this Article

• Connect Cin7 Core to Pipe17
• Order Flow
• Adding an Ingestion Date

Connecting Cin7 Core to Pipe17

Before getting started, ensure that you have admin access to your Cin7 Core account. You will need full permissions to create and access your API keys.

1. Ensure that you are already logged into Cin7 Core.
2. Open this URL in a new browser tab which will direct you to Cin7 Core's External API management interface.

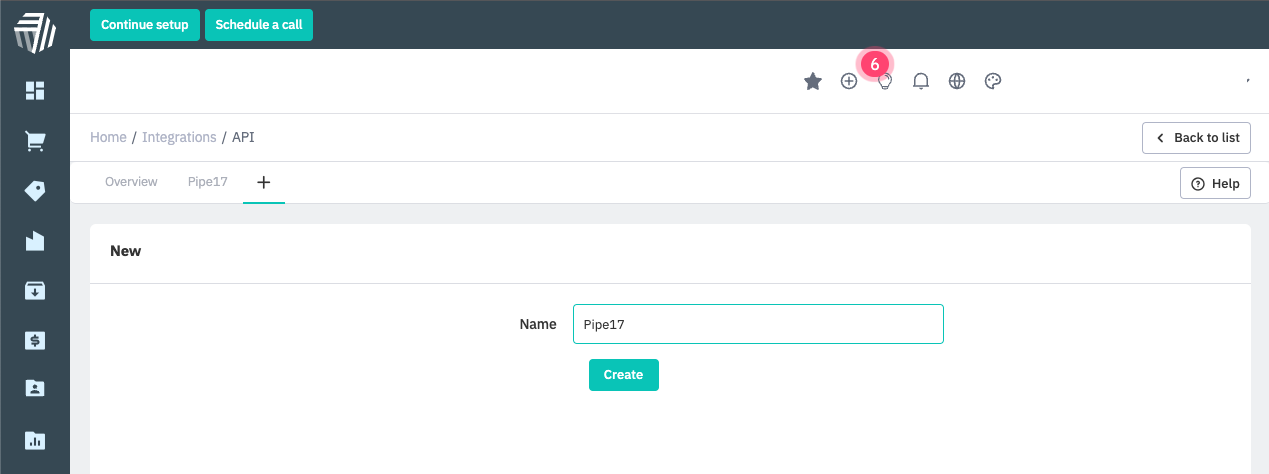

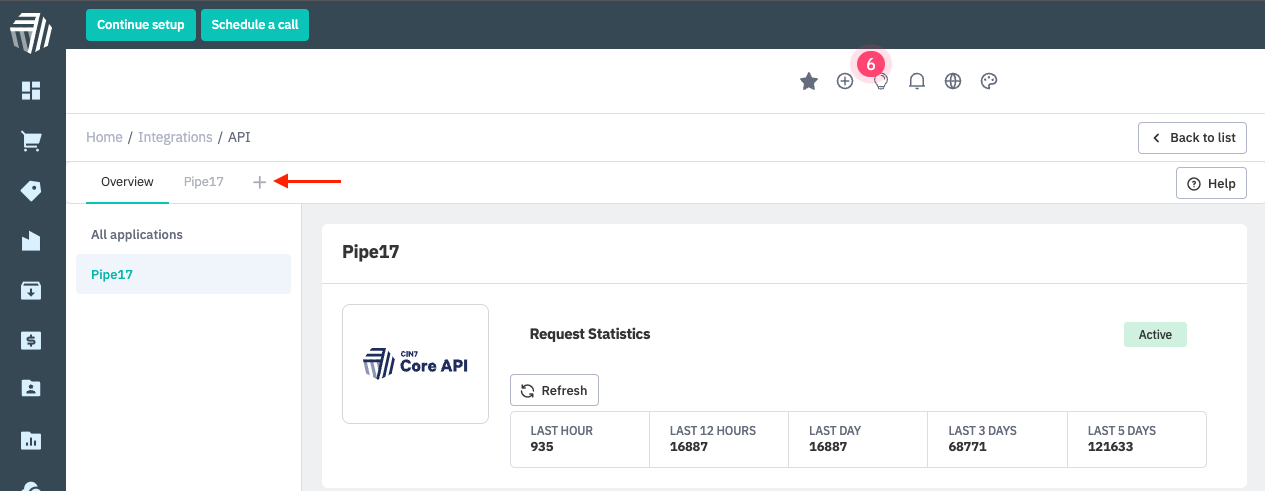

3. Click the + icon to add a new API integration

      4. Name the new API integration "Pipe17"

      5. Click Create.

      6. After you click Create you Cin7 Core will generate an Account ID and it's associated Key. Keep this tab open and navigate back to the Pipe17 seller portal.

In Pipe17

Now you will enter your new Account ID and Key into Pipe17 which will establish your connection to Cin7 Core.

1. Click the Integrations tab on the left
2. Click Add Integration in the upper right corner
3. Search for Cin7 Core. Click on it, and click Connect.
4. Next, navigate back to the Integrations tab and click on the Cin7 Core icon
5. Open the Connection tab on the left

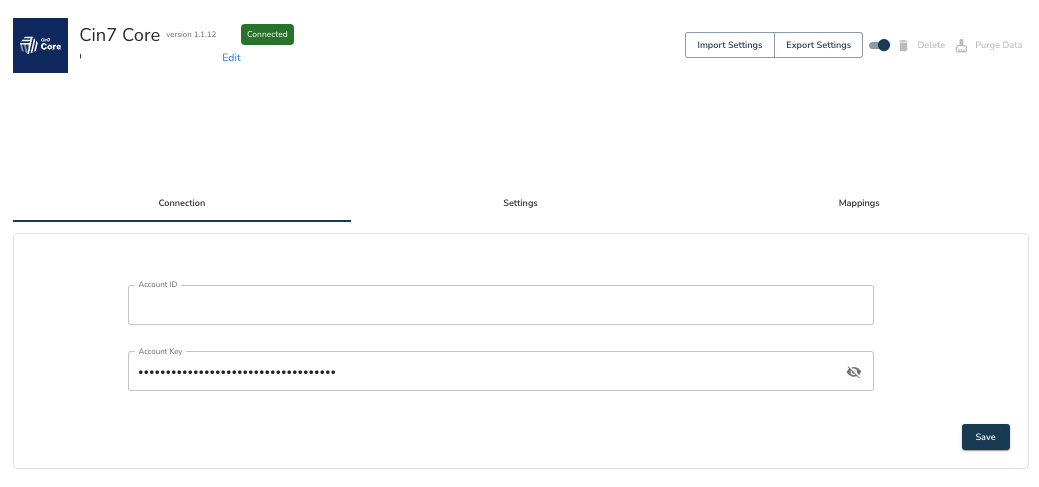

6. Paste your Account ID and Key from Cin7 Core into the designated boxes
7. Click Save

Order Flow

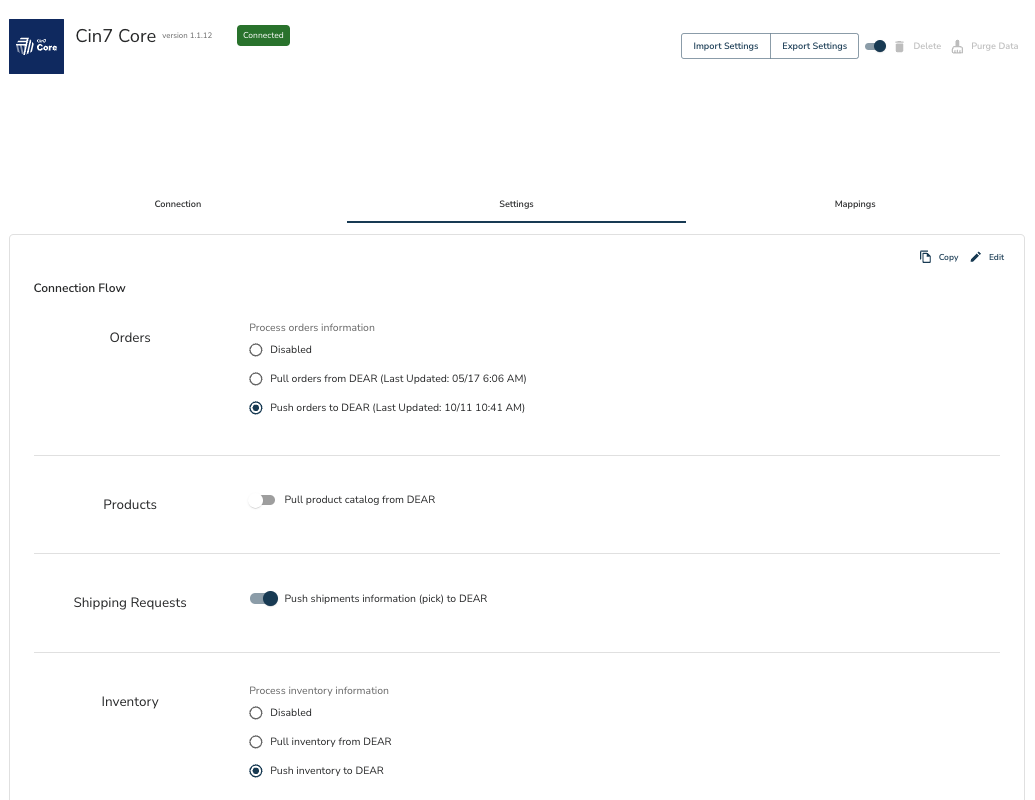

That's all! You're now connected to Cin7 Core via Pipe17! To get started, you'll want to review the Settings tab and configure your order flow depending on where your orders are being pulled from and being pushed to for fulfillment.

• Pull orders from Cin7 Core OR Push orders to Cin7 Core
  • You can only select one (pull or push). Selecting PULL will enable Pipe17 to pull in your product catalog and list it in the Products tab.
  • Selecting Push will update products in Cin7 Core as they are updated in Pipe17 from your sales channel or fulfillment provider.
• Push shipment information to Cin7 Core
  • Turning on this flow will push shipment information originating from your fulfillment provider to Cin7 Core.
• Pull OR push inventory to/from Cin7 Core
  • You can only select one (pull or push). Selecting PULL will enable Pipe17 to pull your inventory totals from Cin7 Core which will be displayed in your Inventory tab in Pipe17.
  • Selecting PUSH will push inventory originating from your fulfillment provider or sales channel to Cin7 Core.
• Push fulfillment information to Cin7 Core
  • Turning on this flow will push fulfillment information from your fulfillment provider (including tracking data) to Cin7 Core
• Pull locations from Cin7 Core
  • Turning on this flow will enable Pipe17 to pull locations from Cin7 Core which will be displayed in your Inventory > Locations tab.

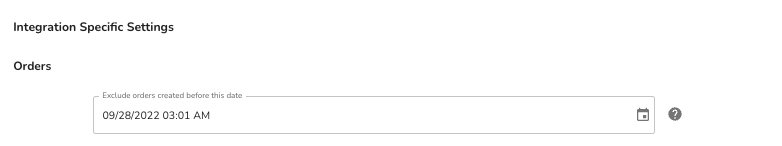

Adding an Ingestion Date

By default, Pipe17 will NOT import orders created prior to your Cin7 Core<>Pipe17 connection being established. In order to ensure your test and future orders import successfully, be sure to add an ingestion date/time.

1. Click on the Integrations tab
2. open the Cin7 Core connector
3. Scroll down to Integration Specific Settings
4. Under Orders, add a date/time equal to the date/time of your Cin7 Core<>Pipe17 connection, or a date/time of when you want Pipe17 to start importing orders.
